Justrite Steel Gas Cylinder Process Stand, 6 Cylinder Capacity, Back-to-Back

Name: Justrite Steel Gas Cylinder Process Stand, 6 Cylinder Capacity, Back-to-Back
Brand: Justrite Manufacturing
SKU: 35314
Price: 2248.54 CAD
Availability: OutOfStock

by Justrite Manufacturing

SKU 35314

Sold out

$2,248.54 - $2,248.54

$2,248.54

$2,248.54 - $2,248.54

$2,248.54

Availability:

Out of stock

Shipping Across Canada

Canadian Owned & Operated

Authorized Distributor & Retailer

Bulk Pricing Available

* See 'Request a quote' form below

Questions? Contact us!

Quantity

Ships In: 1-3 Business Days

Estimated Delivery Time: 3-7 Business Days

Shipping & Returns

We are a Canadian-based retailer & supplier, and we ship right across Canada.

Shipping fees will apply on most orders.

We offer a 15 Day Return Policy on many of the products that we offer. However, products such as Fire Extinguishers, Safes & Cabinets, Special Orders and/or Bulk Orders do not qualify for returns.

Please visit our Shipping & Returns Policy page here for full details.

Warranty

If you encounter a Warranty issue with any products that you have purchased from us, we will gladly serve as the liaison between you and the Manufacturer.

For full details on how the Warranty process works, please visit Warranty.

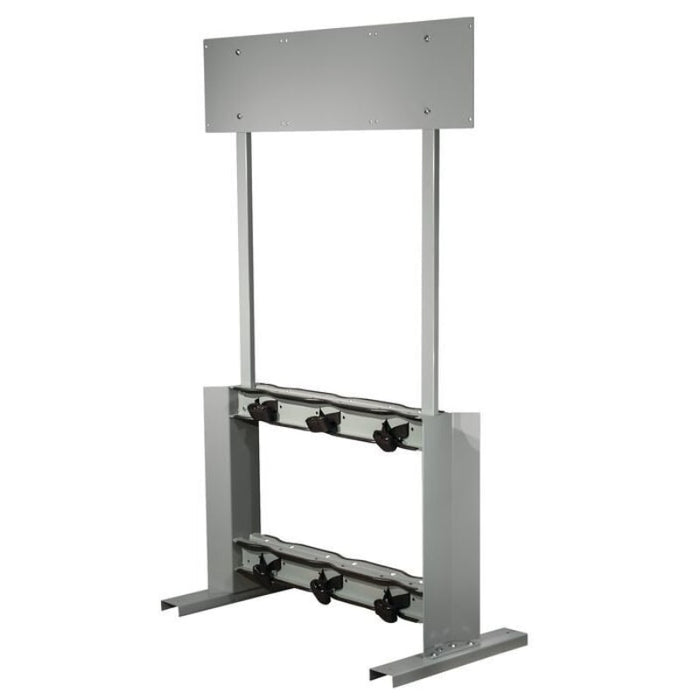

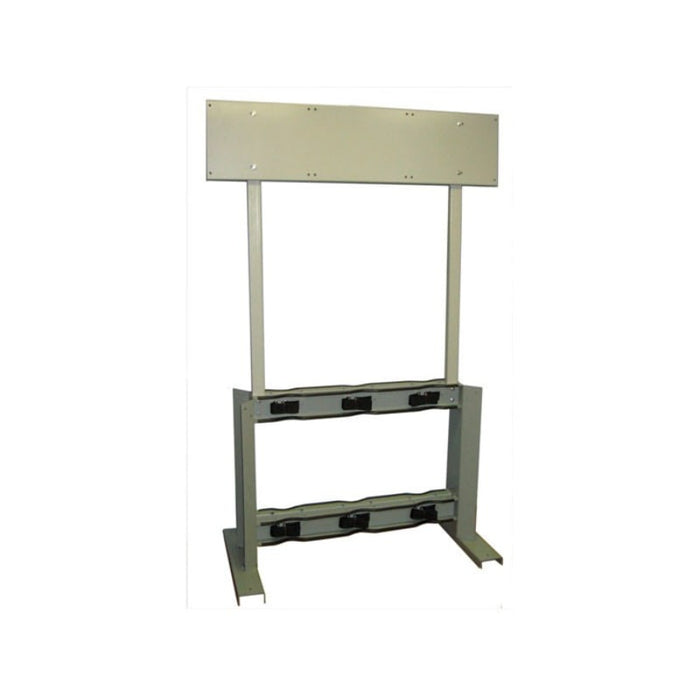

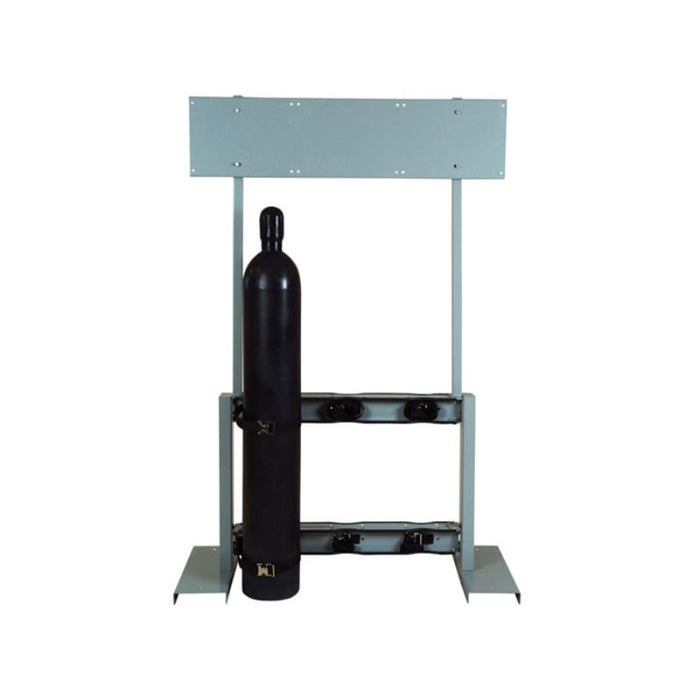

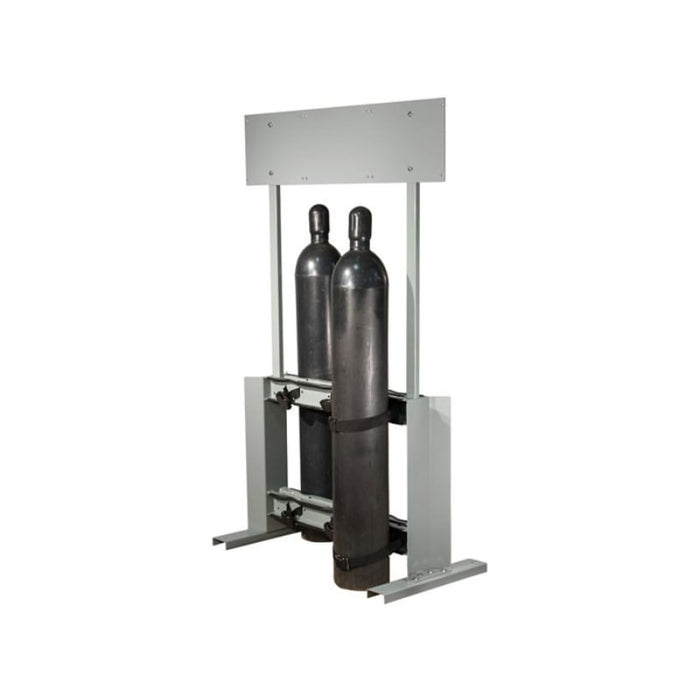

Justrite Steel Gas Cylinder Process Stand, 6 Cylinder Capacity, Back-to-Back - 35314

Designed for the safe storage and distribution of industrial and commercial use compressed gas cylinders, these storage stands help prevent dangerous tipping situations. Back-to-back cylinder storage for maximum space utilization. Powder-coated to ensure long service life and chemical resistance. Pre-drilled holes in base for floor mounting with application specific fasteners (not included).

Two heavy-duty polypropylene support straps, 1.5- x 54-in (38-mm x 1372-mm) and rated at 1138-lb (516-kg), feature steel cinch buckle and hold individual cylinders securely against integral bracket. For an improved level of safety for any installation, all brackets include openings to retrofit secondary support chains, one set for each cylinder strap location.

Helps comply with OSHA, NFP1, NFPA 55, and CGA.

Features:

Securely mount cylinder controls and cross-over devices with integral elevated panels
Welded construction using 11-gauge (3-mm) steel provides structural integrity and longevity
Exclusive bumper guard edging with steel reinforced vinyl protects your cylinders from damage while providing extra grip
Accepts cylinders from 4- to 12-in (102- to 305-mm) in diameter

What's Included:

✓ Justrite Steel Gas Cylinder Process Stand, 6 Cylinder Capacity, Back-to-Back

✓ 1 Year Limited Warranty

Specifications:

Model No	35314
UPC	697841211124
Cylinder Capacity	6
Minimum Cylinder Dia (in)	4
Cylinder Capacity with Max Cylinder Dia	(6) 12 inch
Process Controls Mounting Rail	Panel
Mount Type	Floor
Mount Holes	4
Mount Hole Size (inch)	0.406
Strap Style	Poly Cinch Strap with Steel Buckle
Straps Per Cylinder	2
Material Specifications	Steel
Complies with NFPA 1 Fire-Code	Yes
NFPA 55	Yes
OSHA Compliance	Yes
CGA	Yes
Net Weight, lbs.	129
Net Weight, kg	59
Net Dimensions (W x D x H)	48 x 23 x 72 inches
	1219 x 584 x 1829 mm

Justrite Steel Gas Cylinder Process Stand, 6 Cylinder Capacity, Back-to-Back - 35314 Data Sheet:

Download the Justrite Steel Gas Cylinder Process Stand, 6 Cylinder Capacity, Back-to-Back - 35314 Data Sheet
