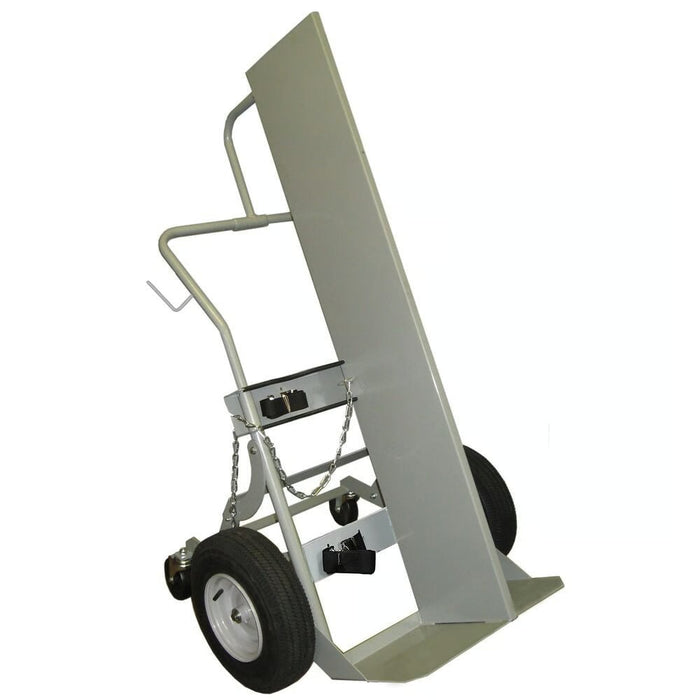

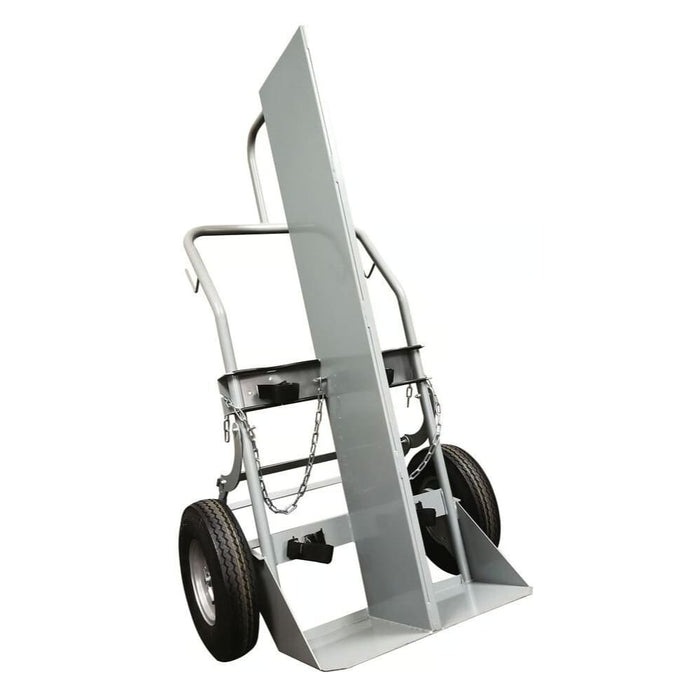

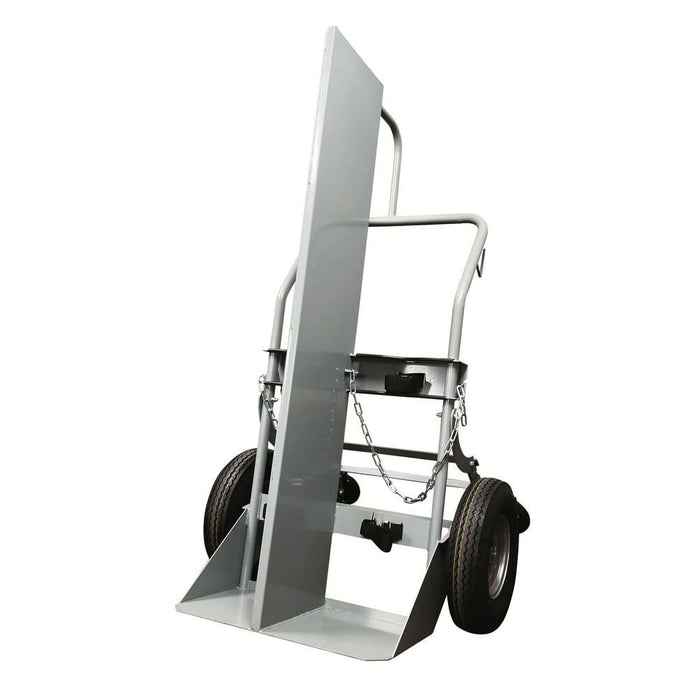

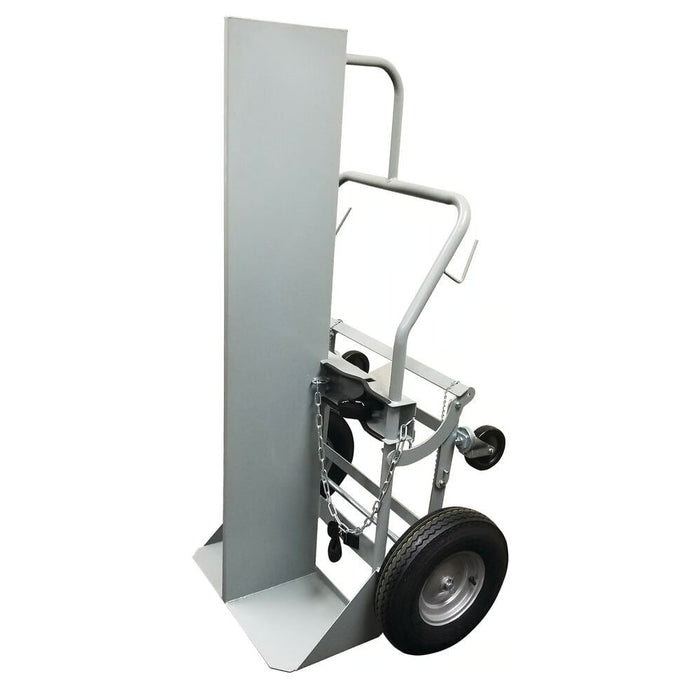

Justrite Double Cylinder Hand Truck With Firewall, 16-Inch Pneumatic Wheels, Rear Casters - 35044

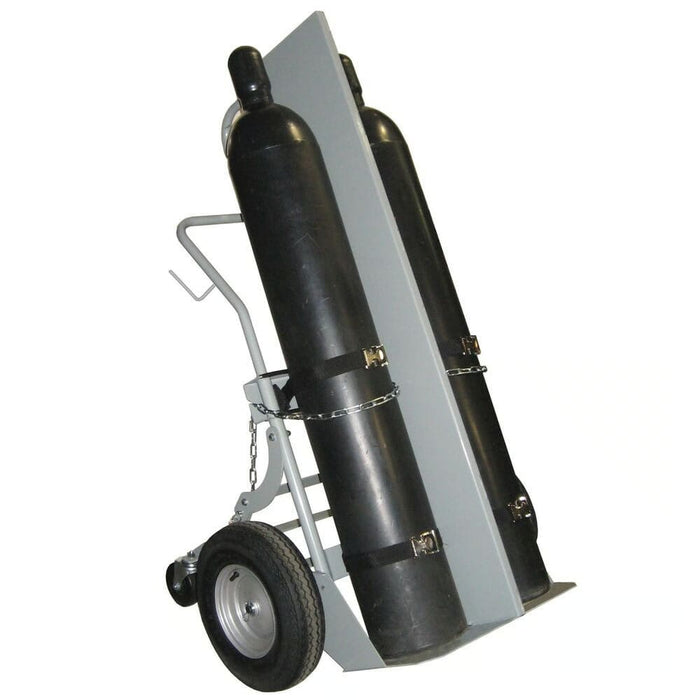

Safely store and transport a pair of fuel and oxidizer cylinders, common in welding applications, up to 13-in (330-mm) and 10-in (254-mm) in diameter, respectively. Constructed using 1.25-in (32-mm) diameter round steel tube with continuous welding, these durable, double-cylinder trucks provide optimum safety, strength, and longevity.
Floor plate made of thick 11-gauge (3-mm) steel with safety fins prevents warping or breaking. The zero-lift height loading allows floor plate to lay flat, thereby eliminating the need to lift cylinder during loading and unloading. Caster carriage features heavy steel bars and nylon washers for smooth folding action and easy storage in tight spaces. Corrosion-resistant powder-coat finish throughout for long life and smooth handling.
Two heavy-duty 1.5- x 54-in (38-mm x 1372-mm) polypropylene support straps, lab tested to 1138-lb (516-kg), feature steel cinch buckles for secure attachment of cylinder—eliminate any cylinder rolling potential seen in chain-secured units. Included welded loop chains provide a secondary means for securing the cylinders.
Exclusive bumper guard edging grips cylinder and minimizes damage to cylinder and hand truck. Triple grip push handle greatly enhances safety on top heavy loads by expanding available grip area for improved leverage and swing radius.
Optional locking posts and collar plate system model 35084 ensures total cylinder immobilization, or accessorize hand trucks with a tool tray or lockable tool box for securing torches and other equipment—models 35388 and 35386 respectively.
†Marinite® I is a registered trademark of BNZ Materials, Inc.
Features:
-
Steel encased Marinite® I† creates a one-hour fire barrier between the fuel and oxidizer—exceeds minimum NFPA 55, NFPA 1, OSHA and CGA standards
-
Configured with 16-in (406-mm) steel hub pneumatic wheels with dual ball bearings for easier rolling—less effort required
-
Includes wide-set dual 5-in (127-mm) swivel caster assemblies for easier, stable transport—folds flat for storage
-
Rated at 1000-lb (454-kg) weight capacity
What's Included:
✓ Double Cylinder Hand Truck w/ Firewall 16" Pneumatic Wheels, Rear Casters
✓ 1 Year Limited Warranty
Specifications:
|
Model No
|
35044
|
|
UPC
|
697841210059
|
|
Cylinder Capacity
|
2
|
|
Minimum Cylinder Diam (in)
|
5
|
|
Cylinder Capacity with Max Cylinder Dia
|
(1) 10 inch and (1) 13 inch
|
|
Firewall Rating
|
One-Hour
|
|
Rear Casters
|
Yes
|
|
Rear Casters (inch)
|
5
|
|
Rear Casters (mm)
|
127
|
|
Main Wheel Type
|
Pneumatic
|
|
Main Wheel Size (inch)
|
16
|
|
Main Wheel Size (mm)
|
406
|
|
Weight Capacity (lb)
|
1000
|
|
Weight Capacity (kg)
|
454
|
|
Strap Style
|
Poly Cinch Strap with Steel Buckle and Chain
|
|
Straps Per Cylinder
|
2
|
|
Material Specifications
|
Steel
|
|
Complies with NFPA 1 Fire-Code
|
Yes
|
|
NFPA 55
|
Yes
|
|
OSHA Compliance
|
Yes
|
|
CGA
|
Yes
|
|
Net Weight, lbs
|
148
|
|
Net Weight, kg
|
67
|
|
Net Dimensions (W x D x H)
|
35 x 26 x 61 inches
|
|
889 x 660 x 1549 mm
|
Justrite Double Cylinder Hand Truck With Firewall, 16" Pneumatic Wheels, Rear Casters - 35044 Data Sheet:
Download the Justrite Double Cylinder Hand Truck With Firewall, 16" Pneumatic Wheels, Rear Casters - 35044 Data Sheet
