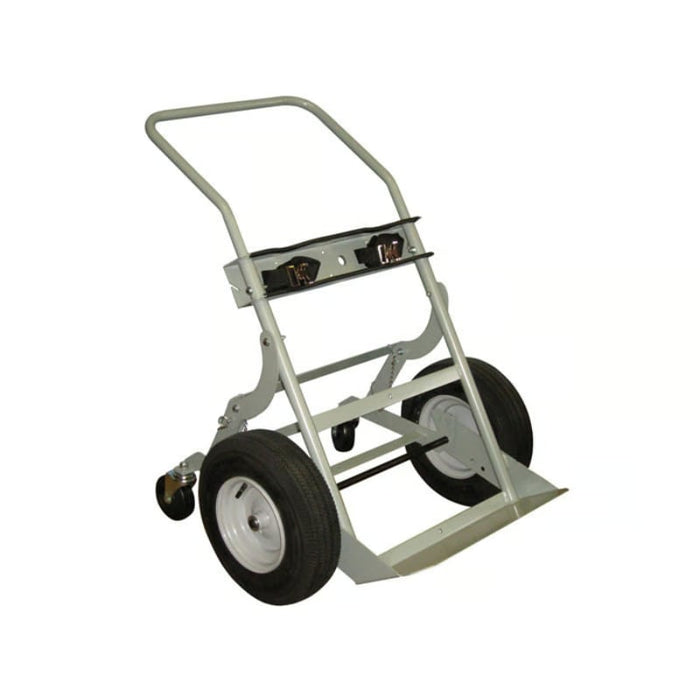

Justrite Double Cylinder Hand Truck, 16-Inch Pneumatic Wheels, Rear Casters - 35036
Never compromise safety when it comes to handling heavy compressed gas cylinders. Constructed of 1-in (25-mm) and 1.25-in (32-mm) diameter round steel tube with continuous welding, these durable, double-cylinder trucks provide optimum safety, strength, and longevity.
Floor plate made of thick 11-gauge (3-mm) steel with safety fins prevents warping or breaking. The unique zero-lift height loading floor plate lays flat, thereby eliminating the need to lift cylinder during loading and unloading. Caster carriage features heavy steel bars and nylon washers for smooth folding action and easy storage in tight spaces. Corrosion-resistant powder coat finish throughout for long life and smooth handling.
Hold gas cylinders in place independently for improved safety. Heavy-duty 1.5- x 54-in (38-mm x 1372-mm) polypropylene support straps, lab tested to 1138-lb (516-kg), feature steel cinch buckles for secure attachment of cylinder—eliminate any cylinder rolling potential seen in chain-secured units. Exclusive bumper guard edging grips cylinder and minimizes damage to cylinder and hand truck.
Optional locking posts and collar plate system model 35084 ensures total cylinder immobilization, or accessorize hand trucks with a tool tray or lockable tool box for securing torches and other equipment—models 35388 and 35386 respectively.
Helps comply with OSHA, NFP1, NFPA 55, and CGA.
Features:
-
Configured with 10.5-in (267-mm) steel hub pneumatic wheels with dual ball bearings for easier rolling—less effort required
-
Includes wide-set dual 5-in (127-mm) swivel caster assemblies for easier, stable transport—folds flat for storage
-
Rated at 1000-lb (454-kg) weight capacity
-

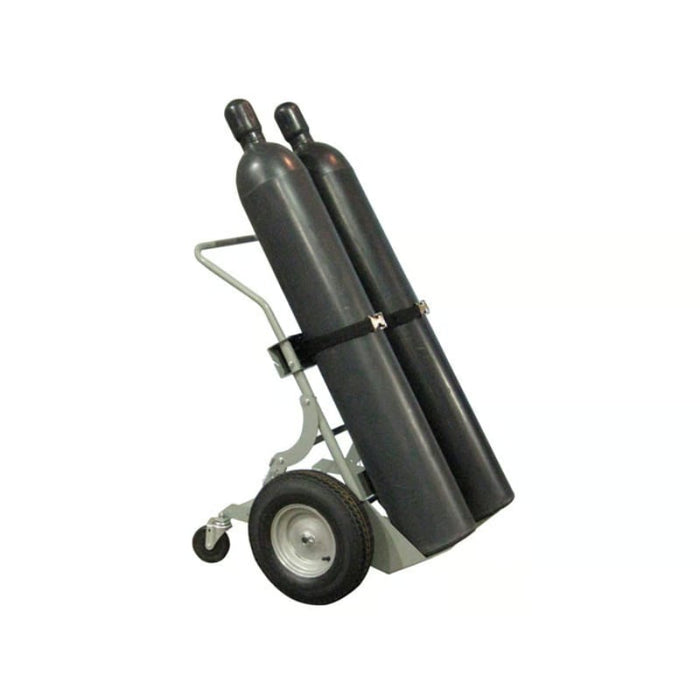

Accepts two gas cylinders with combined diameters up to 23-in (584-mm), including fuel and oxidizer cylinders common in welding applications
What's Included:
✓ Justrite Double Cylinder Hand Truck, 16" Pneumatic Wheels, Rear Casters
✓ 1 Year Limited Warranty
Specifications:
|
Model No
|
35036
|
|
UPC
|
697841210011
|
|
Cylinder Capacity
|
2
|
|
Minimum Cylinder Diam (in)
|
5
|
|
Cylinder Capacity with Max Cylinder Dia
|
(1) 10 inch and (1) 13 inch
|
|
Rear Casters
|
Yes
|
|
Rear Casters (inch)
|
5
|
|
Rear Casters (mm)
|
127
|
|
Main Wheel Type
|
Pneumatic
|
|
Main Wheel Size (inch)
|
16
|
|
Main Wheel Size (mm)
|
406
|
|
Weight Capacity (lb)
|
1000
|
|
Weight Capacity (kg)
|
454
|
|
Strap Style
|
Poly Cinch Strap with Steel Buckle
|
|
Straps Per Cylinder
|
1
|
|
Material Specifications
|
Steel
|
|
Complies with NFPA 1 Fire-Code
|
Yes
|
|
NFPA 55
|
Yes
|
|
OSHA Compliance
|
Yes
|
|
CGA
|
Yes
|
|
Net Weight, lbs
|
90
|
|
Net Weight, kg
|
41
|
|
Net Dimensions (W x D x H)
|
34 x 27 x 47 inches
|
|
864 x 686 x 1194 mm
|
Justrite Double Cylinder Hand Truck, 16" Pneumatic Wheels, Rear Casters - 35036 Data Sheet:
Download the Justrite Double Cylinder Hand Truck, 16" Pneumatic Wheels, Rear Casters - 35036 Data Sheet
