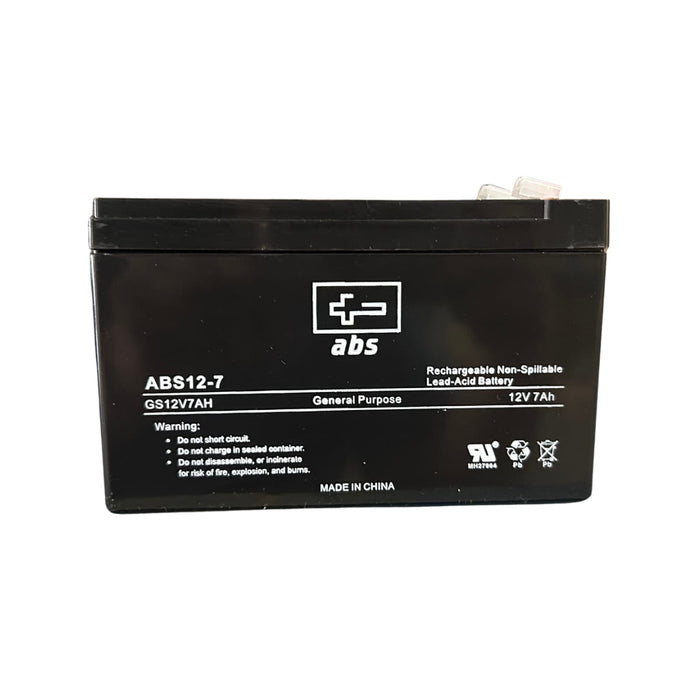

ABS 12V 7Ah AGM Sealed Lead Acid Battery

ABS 12V 7Ah AGM Sealed Lead Acid Battery

by ABS
SKU ABS12-7
$24.13 - $24.13
$24.13
$24.13 - $24.13
$24.13
Availability:
In stock

Shipping Across Canada

Canadian Owned & Operated

Authorized Distributor & Retailer

Bulk Pricing Available

* See 'Request a quote' form below

Questions? Contact us!

Ships in: 1-3 Business Days

Estimated delivery time: 5-7 Business Days

Request a quote | Bulk orders
Shipping & Returns

We are a Canadian-based retailer & supplier, and we ship right across Canada.

Shipping fees will apply on most orders.

We offer a 15 Day Return Policy on many of the products that we offer. However, products such as Fire Extinguishers, Safes & Cabinets, Special Orders and/or Bulk Orders do not qualify for returns.

Please visit our Shipping & Returns Policy page here for full details.

Warranty

If you encounter a Warranty issue with any products that you have purchased from us, we will gladly serve as the liaison between you and the Manufacturer.

For full details on how the Warranty process works, please visit Warranty.

ABS 12V 7Ah AGM SLA Battery - ABS12-7

ABS battery (1.2Ah ~ 26Ah) series is designed for standby use with 5-year design life in float service.

The series battery is featured of high consistency, excellent performance and reliable standby service life. It is widely applied in UPS/EPS, medical equipment, emergency light and security system.

Typical Applications

  • UPS & EPS

  • Security Power Supply

  • Power Utility

  • Electrical Toys



Features:

  • Outstanding consistency in standby systems

  • Stable quality and high pass rate

  • 5 years design life in float operation

  • Low self-discharge rate



What's Included:

✓ ABS 12V 7Ah AGM Sealed Lead Acid Battery



Specifications:

Design floating life @ 20°C (68°F)

5 years

Nominal capacity @ 25°C / 77°F (20 hr rate)

7.0 Ah (0.35A to 1.75Vpc)

Nominal capacity @ 25°C / 77°F (10 hr rate)

6.5 Ah (0.65A to 1.75Vpc)

Nominal capacity @ 25°C / 77°F (5 hr rate)

6.05 Ah (1.21A to 1.70Vpc)

Nominal capacity @ 25°C / 77°F (1 hr rate)

4.91 Ah (4.91A to 1.60Vpc)

Internal resistance (fully charged @ 25°C / 77°F)

22 mΩ

Max discharge current @ 25°C / 77°F

105 A (5 sec)

Cycle use voltage

14.7 – 14.9 V

Max charging current

1.75 A

Standby use voltage

13.6 – 13.8 V

Operating temperature (discharge)

-15 ~ 35°C

Operating temperature (charge)

0 ~ 35°C

Operating temperature (storage)

-15 ~ 35°C

Recommended operating temperature

15 ~ 25°C

Self-discharge

~3% capacity loss per month @ 20°C; up to 6 months storage @ 25°C, then freshening charge required

Dimensions (L × W × H)

151 × 65 × 94 mm (5.9 × 2.6 × 3.7 in)

Total height

99 mm (3.9 in)

Weight

2.03 kg (4.47 lbs.)

Terminal type

T1 / T2

Spec Sheet:

Download the ABS 12V 7Ah AGM Sealed Lead Acid Battery - ABS12-7 Spec Sheet
