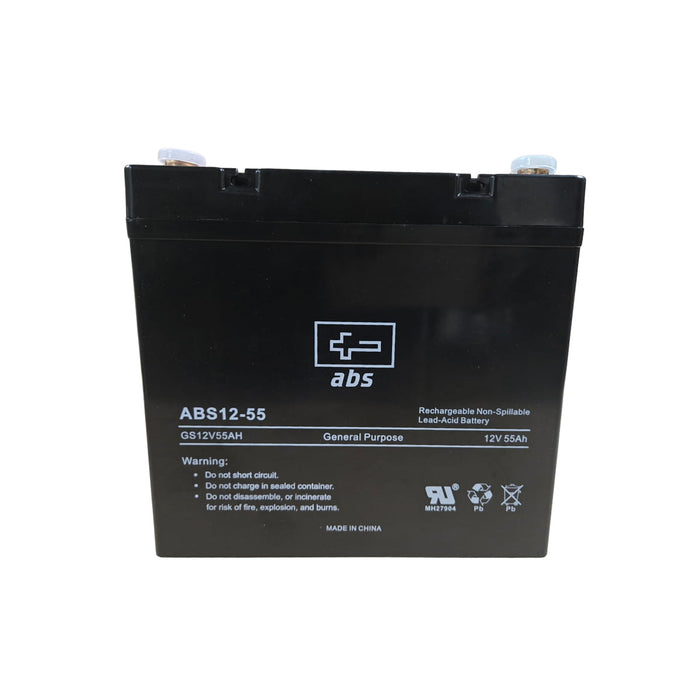

ABS 12V 55Ah AGM Sealed Lead Acid Battery

ABS 12V 55Ah AGM Sealed Lead Acid Battery

by ABS
SKU ABS12-55
$186.35 - $186.35
$186.35
$186.35 - $186.35
$186.35
Availability:
In stock

Shipping Across Canada

Canadian Owned & Operated

Authorized Distributor & Retailer

Bulk Pricing Available

* See 'Request a quote' form below

Questions? Contact us!

Ships in: 1-3 Business Days

Estimated delivery time: 5-7 Business Days

Request a quote | Bulk orders
Shipping & Returns

We are a Canadian-based retailer & supplier, and we ship right across Canada.

Shipping fees will apply on most orders.

We offer a 15 Day Return Policy on many of the products that we offer. However, products such as Fire Extinguishers, Safes & Cabinets, Special Orders and/or Bulk Orders do not qualify for returns.

Please visit our Shipping & Returns Policy page here for full details.

Warranty

If you encounter a Warranty issue with any products that you have purchased from us, we will gladly serve as the liaison between you and the Manufacturer.

For full details on how the Warranty process works, please visit Warranty.

ABS 12V 55Ah AGM SLA Battery - ABS12-55

ABS AGM Battery 12V55AH is designed for standby use with 10-year design life in float service.

The series battery is featured of high consistency, excellent performance and reliable standby service life.

It is widely applied in float service, UPS/EPS, medical equipment, telecom, photovoltaic, control system and security system.

Typical Applications

  • UPS & EPS

  • Security Power Supply

  • Power Utility

  • Telecommunications



Features:

  • Increase durability and deep cycle ability for heavy demand applications

  • Low self-discharge

  • Fully tank formed plates

  • Low impurity electrolyte

  • Spill proof / leak proof

  • Multi-position usage

  • ABS case and cover VO upon request

  • Very high purity lead



What's Included:

✓ ABS 12V 55Ah AGM Sealed Lead Acid Battery



Specifications:

Design Floating Life @ 20°C (68°F)

10 years

Nominal Capacity @ 25°C (77°F) – 20 Hour Rate

55 Ah (2.75A to 1.75 Vpc)

Nominal Capacity @ 25°C (77°F) – 10 Hour Rate

52 Ah (5.20A to 1.75 Vpc)

Internal Resistance (Fully Charged @ 25°C / 77°F)

7 mΩ

Max. Discharge Current @ 25°C (77°F)

520 A (5S)

Charge Method – Cycle Use

14.7–14.9 V

Max. Charge Current

14 A

Charge Method – Standby Use

13.6–13.8 V

Dimensions (L × W × H × TH)

229 × 137 × 205 × 210 mm (9.0 × 5.4 × 8.1 × 8.3 in)

Weight

16.0 kg (35.2 lbs.)

Operating Temperature Range

-30 ~ 50°C

Self-Discharge

3% of capacity declined per month @ 25°C (77°F)

Notes

Battery voltage must be adjusted according to temperature. Please refer to our recommendation.

Spec Sheet:

Download the ABS 12V 55Ah AGM Sealed Lead Acid Battery - ABS12-55 Spec Sheet
