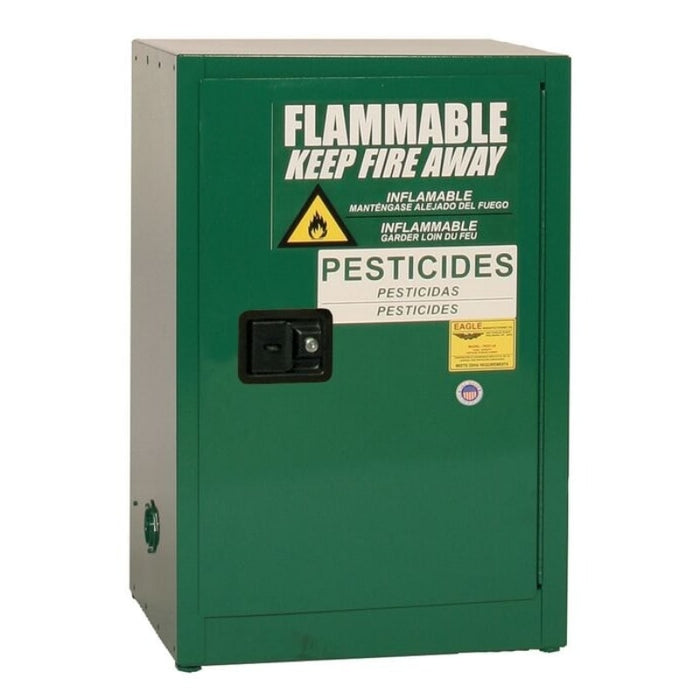

Eagle Manufacturing 12 Gallon, 1 Shelf, 1 Door, Self Close, Pesticide Space Saver Safety Cabinet in Green - PEST24
The Eagle 12 Gallon, self-closing, Space Saver Pesticide Safety Cabinet provides needed protection for companies who specialize in lawn care, golf course management, agricultural interests or who handle and store pesticides and poisons.
Constructed of 18-gauge (1 mm) steel, the sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with trilingual warning, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill.
Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Includes poly shelf and sump trays to help contain small spills and provide extra corrosion protection. Cabinets are FM-Approved and meet NFPA Code 30 and OSHA requirements.
Features:
-
Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors
-
Constructed of 18-gauge steel
-
Lead-free, high-gloss, baked-on powder finish
-
Continuous piano hinges
-
Ground connection
-
Four adjustable galvanized leveling legs
-
Trilingual warning labels
-
2 in (5.1 cm) raised leak proof sill
-
Patented adjustable galvanized steel shelves direct spills to back and bottom of leak proof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL)
-
Internal and external welded construction
-
Two 2 in (5.1 cm) internal vents with fire baffle and cap
-
Flush mounted door handle with key lock
-
Three-point stainless steel bullet latching system
-
3 in (7.6 cm) centers for shelf brackets
-
Self-latching doors
-
Door closings: Self-Closing (135° opening)
-
Concealed self-close mechanism provides obstruction-free access to top shelf space
What's Included:
✓ Eagle Manufacturing PEST24 Pesticide Space Saver Safety Cabinet in Green
✓ Poly Shelf and Sump Tray
✓ 10 Year Limited Warranty
Specifications:
Model No
|
PEST24
|
Color
|
Green
|
Material Specifications
|
18-Gauge Steel
|
FM Approval
|
Yes
|
OSHA Compliance
|
Yes
|
Complies with NFPA Code 30
|
Yes
|
Door Style
|
Self-close
|
UPC
|
48441690268
|

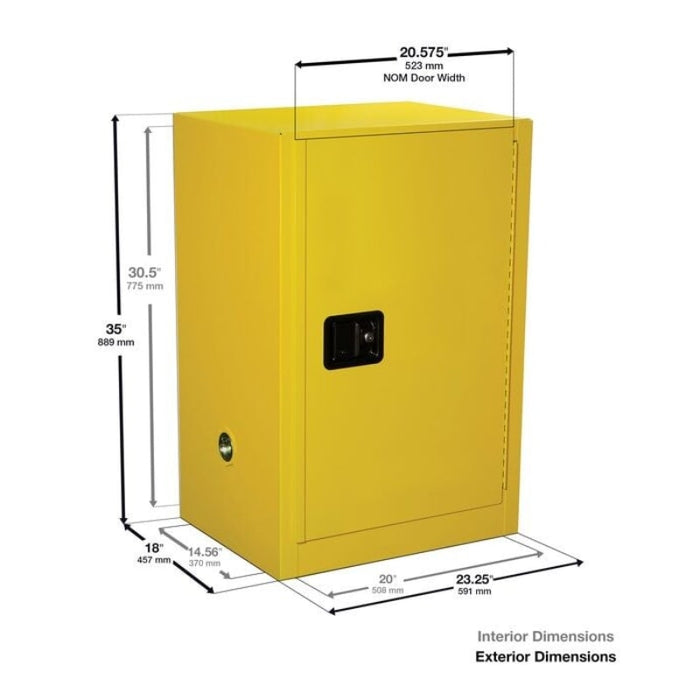

Dimensions, Exterior
|
23.25W x 18Dx 35H
|
Dimensions, Interior
|
20" W x 14.56" D x 30.5" H
|
Number of Doors
|
1
|
Number of Shelves
|
1
|
Uniform Fire Code
|
Yes
|
Lock
|
Yes
|
Gallon Capacity
|
12
|
Liter Capacity
|
45.42
|
Replacement Shelf Model No.
|
29936
|
Pallet Quantity
|
1
|
Shelf Depth
|
14" (35.6 cm)
|
Net Weight, lbs.
|
100
|
Net Weight, kgs
|
45.36
|
Adjustable Shelf
|
Yes
|
Eagle Manufacturing 12 Gallon, 1 Shelf, 1 Door, Self Close, Pesticide Space Saver Safety Cabinet, Green - PEST24 Data Sheet
Download the Eagle Manufacturing 12 Gallon, 1 Shelf, 1 Door, Self Close, Pesticide Space Saver Safety Cabinet, Green - PEST24 Data Sheet
