Eagle Manufacturing 55 Gallon, 1 Drum, Vertical, 1 Shelf, 2 Door, Self Close, Safety Cabinet in Yellow - 2610

The Eagle 55 Gallon, self-closing, Vertical Drum Storage Safety Cabinet, can safely contain a 55-gallon drum of flammable liquid. The cabinet features a convenient half shelf for additional storage space for accessories or containers and drum supports to keep drums elevated off cabinet sump.

Constructed of 18-gauge (1 mm) steel, the sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill.

Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Cabinets are FM-Approved and meet NFPA Code 30 and OSHA requirements.




Features:

  • Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors

  • Constructed of 18-gauge steel

  • Lead-free, high-gloss, baked-on powder finish

  • Continuous piano hinges

  • Ground connection

  • Four adjustable galvanized leveling legs

  • Trilingual warning labels

  • 2 in (5.1 cm) raised leak proof sill

  • Patented adjustable galvanized steel shelves direct spills to back and bottom of leak proof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL)

  • Internal and external welded construction

  • Two 2 in (5.1 cm) internal vents with fire baffle and cap

  • Flush mounted door handle with key lock

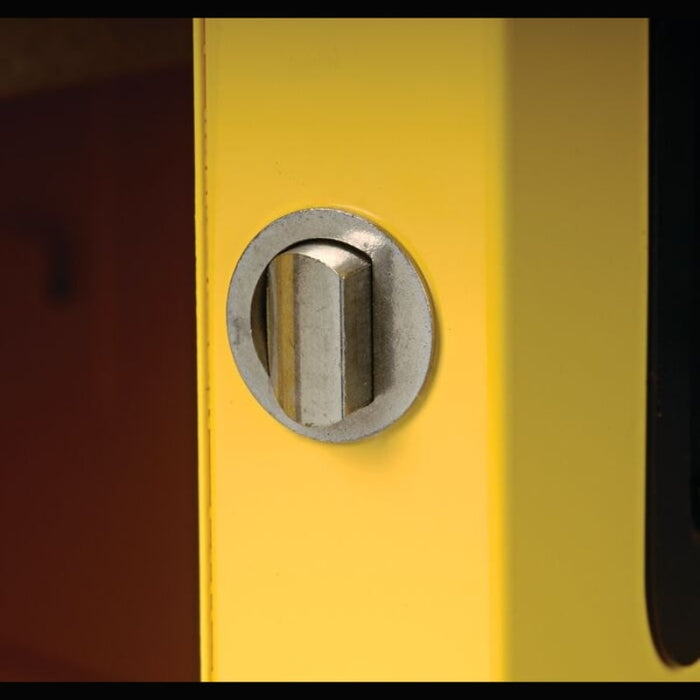

  • Three-point stainless steel bullet latching system

  • 3 in (7.6 cm) centers for shelf brackets

  • Self-latching doors

  • Door closings: Self-Closing (135° opening)

  • Concealed self-close mechanism provides obstruction-free access to top shelf space

  • Self-indexing doors guarantee they will close in sequence and ensure a tight closure from top to bottom




What's Included:

✓ Eagle Manufacturing 2610 Safety Cabinet in Yellow

✓ 10 Year Limited Warranty




Specifications:

Model No

2610

Color

Yellow

Material Specifications

18-Gauge Steel

FM Approval

Yes

OSHA Compliance

Yes

Complies with NFPA Code 30

Yes

Door Style

Self-close

UPC

48441692279

Dimensions, Exterior

34W x 34Dx 65H

Dimensions, Interior

30.75" W x 30.34" D 60.5" H

Number of Doors

2

Number of Shelves

1

Uniform Fire Code

Yes

Lock

Yes

Gallon Capacity

55

Liter Capacity

208.2

Replacement Shelf Model No.

29946

Pallet Quantity

1

Shelf Depth

14" (35.6 cm)

Net Weight, lbs.

347

Net Weight, kgs

157.4

Adjustable Shelf

Yes



Eagle Manufacturing 55 Gallon, 1 Drum, Vertical, 1 Shelf, 2 Door, Self Close, Safety Cabinet, Yellow - 2610 Data Sheet:

Download the Eagle Manufacturing 55 Gallon, 1 Drum, Vertical, 1 Shelf, 2 Door, Self Close, Safety Cabinet, Yellow - 2610 Data Sheet
