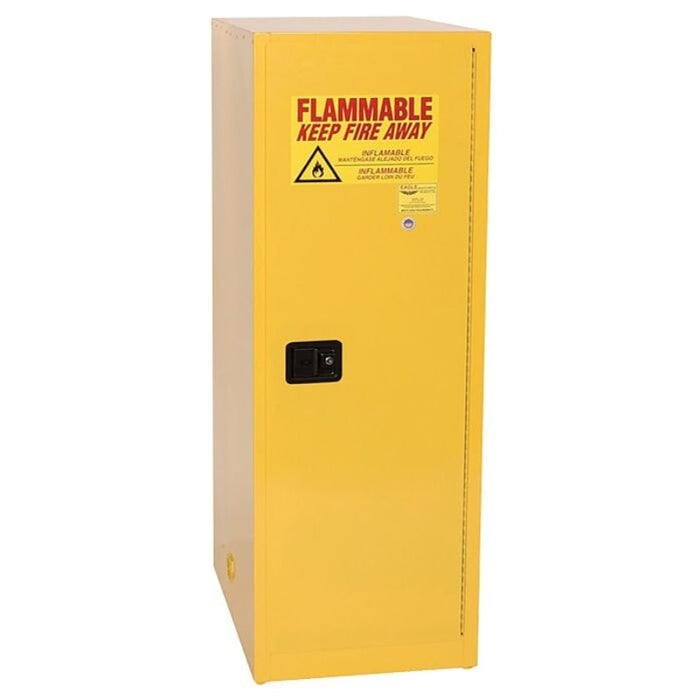

Eagle Manufacturing 48 Gallon, 3 Shelves, 1 Door, Manual Close, Space Saver, Flammable Liquid Cabinet in Yellow - 1946

The Eagle Manufacturing 24 Gallon, manual close, Deep Space Saver Flammable Liquid Safety Cabinet is constructed of 18-gauge (1 mm) steel. The sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls.

Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill.

Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Cabinets are FM-Approved and meet NFPA Code 30 and OSHA requirements.

Features:

• Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors

• Constructed of 18-gauge steel

• Lead-free, high-gloss, baked-on powder finish

• Continuous piano hinges

• Ground connection

• Four adjustable galvanized leveling legs

• Trilingual warning labels

• 2 in (5.1 cm) raised leak proof sill

• Patented adjustable galvanized steel shelves direct spills to back and bottom of leak proof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL)

• Internal and external welded construction

• Two 2 in (5.1 cm) internal vents with fire baffle and cap

• Flush mounted door handle with key lock

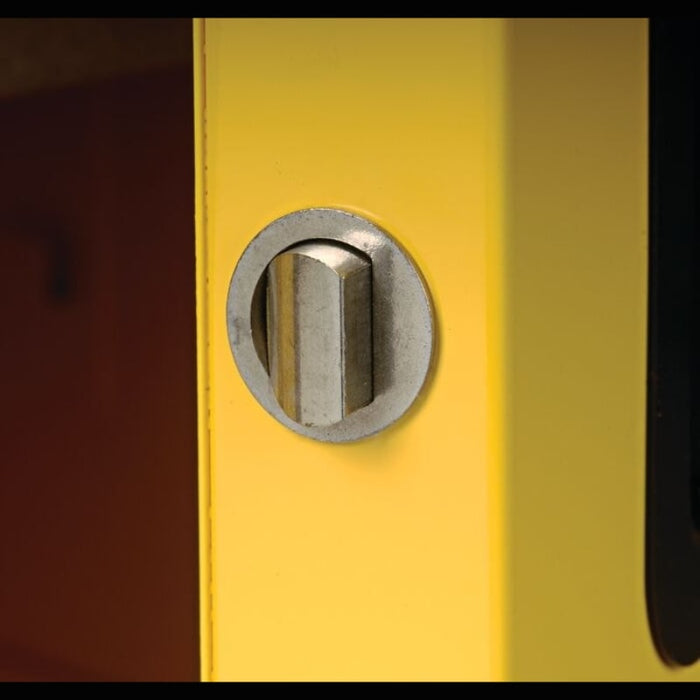

• Three-point stainless steel bullet latching system

• 3 in (7.6 cm) centers for shelf brackets

• Self-latching doors

• Door closings: Manual Close (180° opening)

What's Included:

✓ Eagle Manufacturing 1946 Flammable Liquid Cabinet in Yellow

✓ 10 Year Limited Warranty

Specifications:

Eagle Manufacturing 48 Gallon, 3 Shelves, 1 Door, Manual Close, Space Saver, Flammable Liquid Cabinet, Yellow - 1946 Data Sheet:

Download the Eagle Manufacturing 48 Gallon, 3 Shelves, 1 Door, Manual Close, Space Saver, Flammable Liquid Cabinet, Yellow - 1946 Data Sheet
