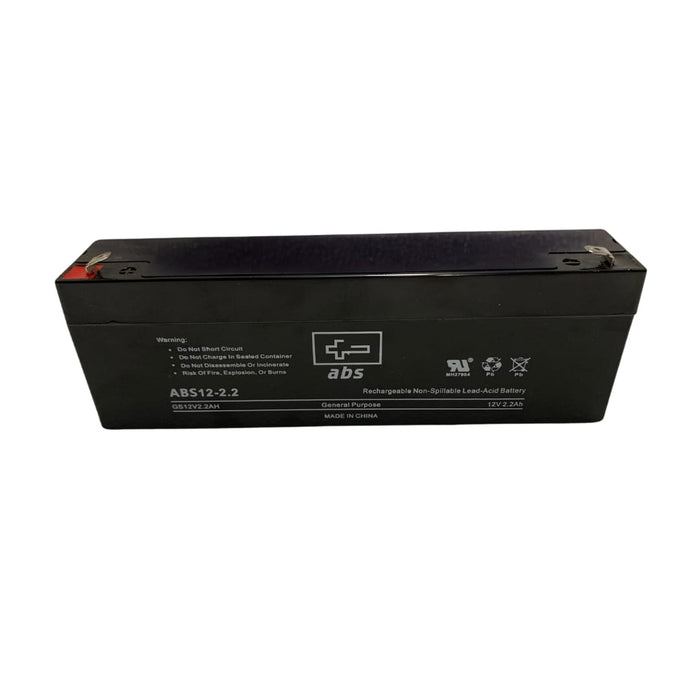

ABS 12V 2.2Ah AGM Sealed Lead Acid Battery

ABS 12V 2.2Ah AGM Sealed Lead Acid Battery

by ABS
SKU ABS12-2
$13.78 - $13.78
$13.78
$13.78 - $13.78
$13.78
Availability:
In stock

Shipping Across Canada

Canadian Owned & Operated

Authorized Distributor & Retailer

Bulk Pricing Available

* See 'Request a quote' form below

Questions? Contact us!

Ships in: 1-3 Business Days

Estimated delivery time: 5-7 Business Days

Request a quote | Bulk orders
Shipping & Returns

We are a Canadian-based retailer & supplier, and we ship right across Canada.

Shipping fees will apply on most orders.

We offer a 15 Day Return Policy on many of the products that we offer. However, products such as Fire Extinguishers, Safes & Cabinets, Special Orders and/or Bulk Orders do not qualify for returns.

Please visit our Shipping & Returns Policy page here for full details.

Warranty

If you encounter a Warranty issue with any products that you have purchased from us, we will gladly serve as the liaison between you and the Manufacturer.

For full details on how the Warranty process works, please visit Warranty.

ABS 12V 2.2Ah AGM SLA Battery - ABS12-2

ABS battery (1.2Ah – 26Ah series) is designed for standby use with a 5-year design life in float service.

It offers high consistency, excellent performance, and reliable standby operation. Widely used in UPS/EPS systems, medical equipment, emergency lighting, and security systems.

Typical Applications

  • UPS & EPS

  • Security Power Supply

  • Power Utility

  • Electrical Toys



Features:

  • Outstanding consistency in standby systems

  • Stable quality and high pass rate

  • 5 years design life in float operation

  • Low self-discharge rate



What's Included:

✓ ABS 12V 2.2Ah AGM Sealed Lead Acid Battery



Specifications:

Design floating life @ 20°C (68°F)

5 years

Nominal capacity @ 25°C / 77°F (20 hr rate)

2.3 Ah (0.12A to 1.75Vpc)

Nominal capacity @ 25°C / 77°F (10 hr rate)

2.2 Ah (0.22A to 1.75Vpc)

Nominal capacity @ 25°C / 77°F (5 hr rate)

2.1 Ah (0.42A to 1.70Vpc)

Nominal capacity @ 25°C / 77°F (1 hr rate)

1.3 Ah (1.29A to 1.60Vpc)

Internal resistance (fully charged @ 25°C / 77°F)

65 mΩ

Max discharge current @ 25°C / 77°F

22 A (5 sec)

Cycle use voltage

14.7 – 14.9 V

Max charging current

0.6 A

Standby use voltage

13.6 – 13.8 V

Operating temperature (discharge)

-15 ~ 35°C

Operating temperature (charge)

0 ~ 35°C

Operating temperature (storage)

-15 ~ 35°C

Recommended operating temperature

15 ~ 25°C

Self-discharge

~3% capacity loss per month @ 20°C; up to 6 months storage @ 25°C (freshening charge required after)

Dimensions (L × W × H)

179 × 35 × 61.5 mm (7.0 × 1.4 × 2.4 in)

Total height

67 mm (2.6 in)

Weight

0.88 kg (1.94 lbs.)

Terminal type

T1

Spec Sheet:

Download the ABS 12V 2.2Ah AGM Sealed Lead Acid Battery - ABS12-2 Spec Sheet
