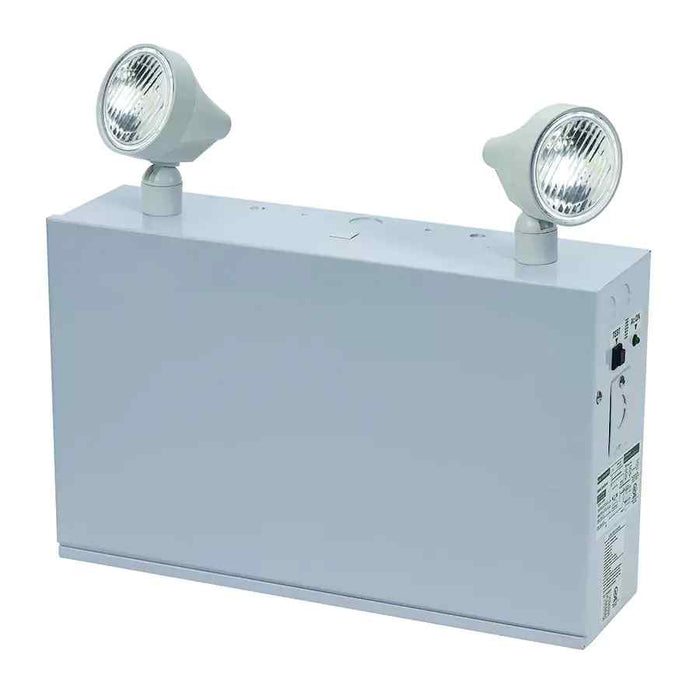

Mircom 12 Volt 275 Watt LED Emergency Battery Backup Unit (Remote Capable) - Model # EL-7064S5

Mircom’s Emergency Lighting products offer efficiency, quality, affordability, and universal designs that are ideal for all indoor applications.

Note: The Mircom EL-7064S5 replaces the discontinued EL-7064S model and offers the same reliable 275W remote-capable emergency battery backup performance.

Efficiency

Using the latest in LED technology, MGC achieves high brightness and low power consumption with a 50,000 hour bulb rating.

Quality

Built with a steel housing that provides corrosion resistance and durability. Standard 3 year warranty.

Affordability

No bulb replacement for the complete life-span of the product. Fewer service calls, energy efficient, lower cost of ownership.

Universal Design

Universal input voltage range from 120/347 VAC. Easy to understand instructions for wall mounting. Optional line cord for wiring into existing wall plug.

Features:

• Durable steel housing
• UL 924 Compliant
• Wall mountable with optional line cord included
• Universal input voltage: 120/347VAC, 50/60Hz
• Energy-efficient LED technology
• Two 12V 12Ah sealed lead acid batteries connected in series (24V system)
• Two integrated 5W LED emergency light heads
• Up to 265W additional remote lighting capacity (30-minute operation)
• ULC battery backup:
  • 30 minutes at 275W
  • 90 minutes at 140W total load
  • 120 minutes at 100W total load
• Test switch and charge indicator light
• Overcharge and over-discharge protection
• Suitable for damp locations
• Operating temperature:
  • 15°C – 35°C (59°F – 95°F)

Remote Add-ons:

This unit includes two integrated 5W LED light heads and supports up to 265W of additional remote lighting (30-minute operation) using one or more of the following Mircom remote heads:

• EL-7030A (1.5W)
• EL-7030A5 (5W)
• EL-7030B (3W)
• EL-7030B10 (10W)
• EL-7030AWP (3W Weatherproof)
• EL-7030BWP (6W Weatherproof)

✓ 3 Year Warranty

Brochure & Product Sheet:

Download the Mircom 12 Volt 275W LED Emergency Light Unit - EL-7064S5 Product Data Sheet
